Nissan Juke 2023 Owners Manual

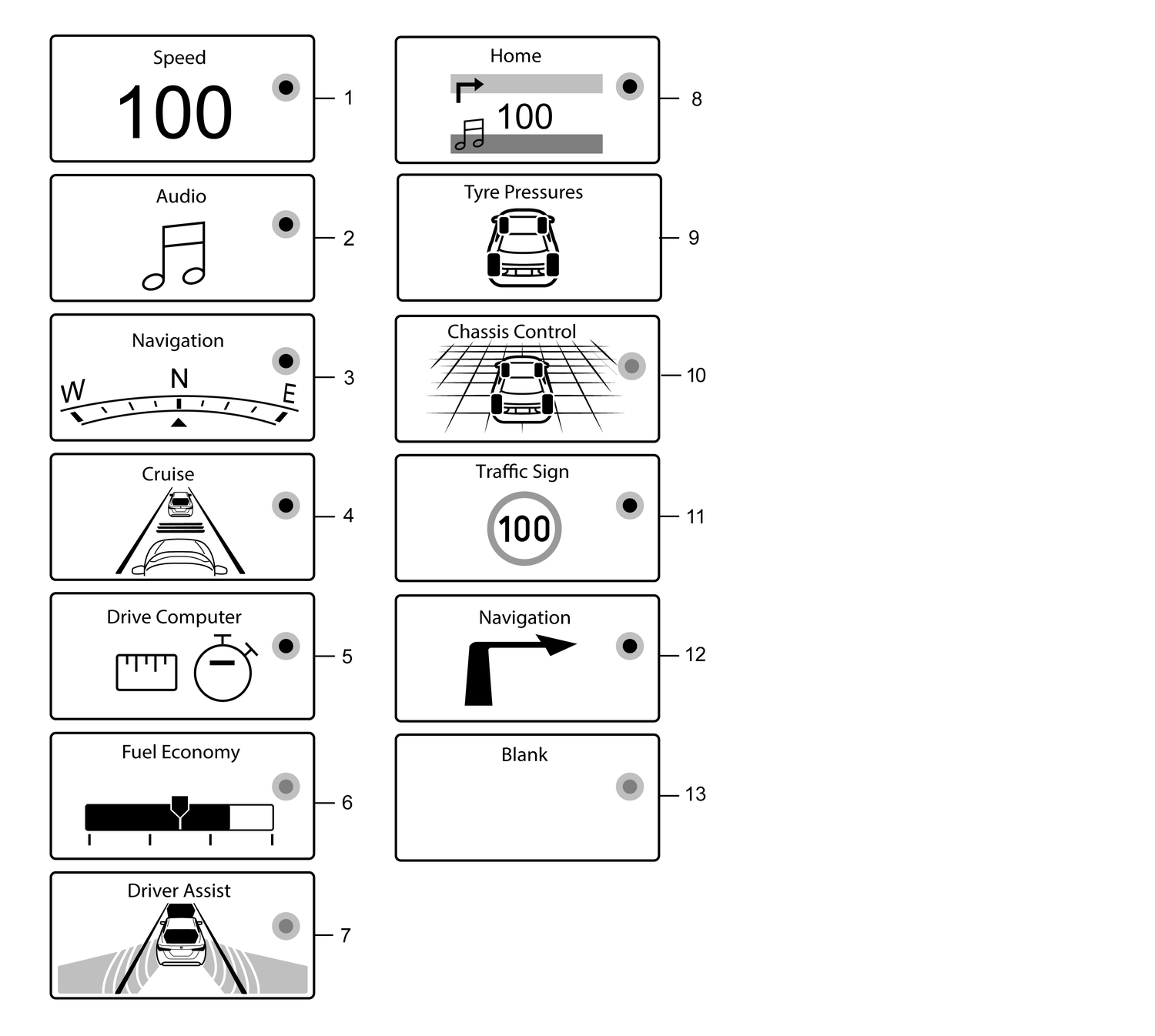

4.3.6.1. 7 inch display
1. [Speed] and [Average] speed (km/h or MPH)
The (digital) speed shows the current speed at which the vehicle is travelling.
The average speed mode shows the average vehicle speed since the last reset. Push and hold the <OK> switch for longer than 3 seconds to enter the Reset menu.
The display is updated every 30 seconds. The first 30 seconds after a reset, the display shows [–––].
Press the
or
button to switch to the secondary average speed mode. The secondary average speed resets after 30 minutes or when the ignition is placed in the OFF position.
2. [Audio]
The audio mode shows the status of audio information.
For more details, see
or the separately provided NissanConnect Owner's manual.3. Compass (where fitted)
A compass is displayed.
4. ProPILOT Assist or Intelligent Cruise Control and Steering Assist (where fitted)
Actual screen contents may vary.
This screen shows the operating conditions for the following systems:
Intelligent Cruise Control
Steering Assist
The screen will also be shown when ProPILOT Assist or Intelligent cruise control is turned on (provided cruise screen/display function is turned on in Display Settings).
For more details, see
or .5. [Drive Computer]
Elapsed [Time]: The elapsed time mode shows the time since the last reset. Push the <OK> switch for longer than 1 second to enter the Reset menu. (The trip odometer is also reset at the same time.)
Trip [Distance]: The trip odometer mode shows the total distance the vehicle has been driven since the last reset. Push the <OK> switch for longer than 1 second to enter the Reset menu. (The elapsed time is also reset at the same time.)
Press the or button to switch to the secondary distance mode. The secondary distance resets after 30 minutes or when the ignition is placed in the OFF position.
6. [Fuel Economy] (l (litre)/100 km, km/l (litre) or MPG)
The average fuel consumption mode shows the average fuel consumption [Since Start], [Since Reset], or [Since Refuel]. Push the <OK> switch for longer than 1 second to enter the Reset menu.
The display is updated every 30 seconds. For about the first 500 m (1/3 mile) after a reset, the display shows [–––].
Press the or button to switch to the second Fuel Economy page.
7. [Driver Assist] (where fitted)
The driving aids mode shows the operating condition for the following systems.
Lane Departure Warning (LDW)
Intelligent Lane Intervention/Lane Departure Prevention (LDP)
Intelligent Emergency Braking (IEB)
Blind Spot Warning (BSW)
Intelligent Blind Spot Intervention
For more details, see
, and/or .8. [Home]
This screen shows a combined view of basic information covering, for example: Navigation, Speed and Audio.
9 [Tyre Pressures] (where fitted)
The tyre pressure mode shows the pressure of all four tyres. The displayed values are only available while the vehicle is being driven.
When the [Low Tyre Pressure Add Air] warning appears, the display can be switched to the tyre pressure mode by pushing the <OK> switch to reveal additional details on the displayed warning.
10. [Chassis Control]
This mode shows the operating condition of the following systems.
Active Trace Control
Intelligent Ride Control
Automatic brake hold function
11. [Traffic Sign] Recognition (TSR) (where fitted)
The Traffic Sign Recognition (TSR) system provides the driver with information about the most recently detected speed limit.
For more details, see
.12. [Navigation] (where fitted)
When the route guidance is set in the navigation system, this item shows the navigation route information.
For more details, see the separately provided NissanConnect Owner's manual.
13. Blank screen
The blank screen can be selected when the driver does not want see any information on the trip computer screen.
