Nissan Juke 2026 Owners Manual
4.9.1. Headlight aiming control switch (where fitted)

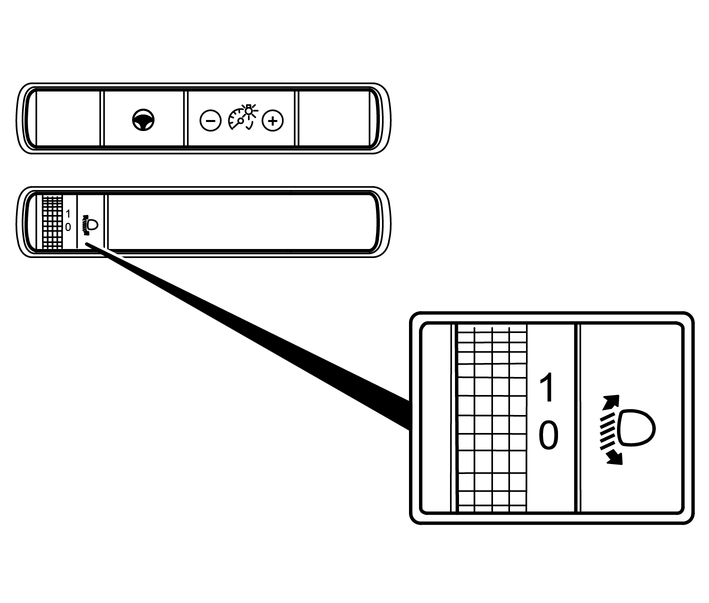

Depending on the number of occupants in the vehicle and the load it is carrying, the headlight axis may be higher than desired. If the vehicle is travelling on a hilly road, the headlights may directly hit the rear-view mirror of the vehicle ahead or the windscreen of an oncoming vehicle. The light axis can be lowered using the switch located on the driver's side of the instrument panel, next to the steering wheel.
The higher the number designated on the switch, the lower the axis.
When travelling with no heavy load on a flat road, select position 0.
Switch Position | Occupants | Trunk Loading |
0 | Driver only | None |
0 | Driver and front passenger | None |
2 | All seats occupied | None |
3 | All seats occupied | Full trunk loading |
3 | Driver only | Full trunk loading |
NISSAN recommends consulting local regulations on the use of lights.
